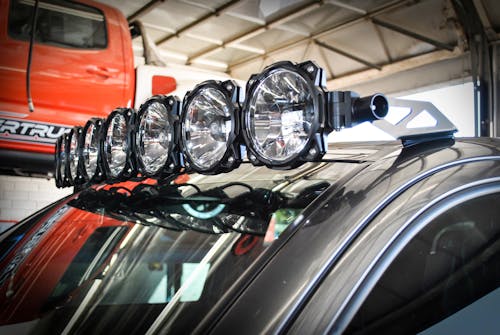

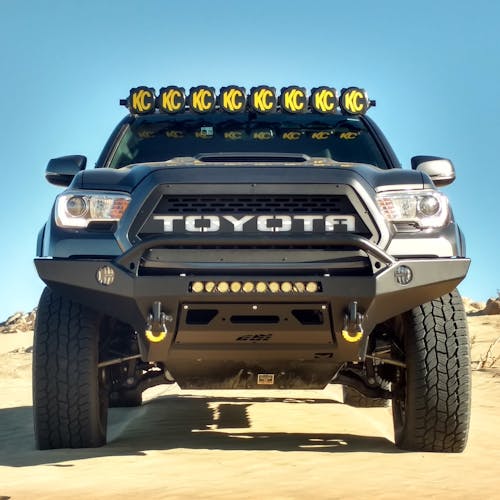

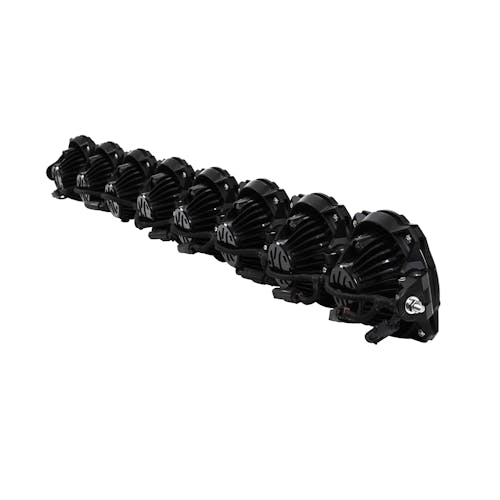

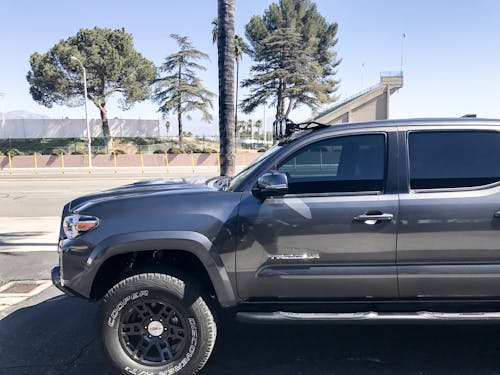

KC's Gravity LED Pro6 8-Light 50" LED Overhead Light Bar System for 05-24 Toyota Tacoma trucks delivers 18,400 lumens of output to provide light where you need it most. Includes overhead mounts, wire harness and hardware.

---

Inspired by endurance racing, tested by KC athletes, the Pro6 shatters all performance benchmarks, while providing the most durable and scalable light bar design available today.Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm Raw Lumens: Low- 2,967 lm, High- 2,575 lmRaw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lmRaw Lumens: Low- 2,967 lm, High-2,575 lm, DRL- 386 lmReplaceable 55W/60W H4 Halogen Bulb with sealed boot Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving, and Wide-40 patterns.Replacement Lens only for the KC(R) FLEX ERA(R) 3 Spot Pattern Clear ColorSatin Black Powder Coat FinishSatin Black Powder Coat Finish The patented Infinity Ring(TM) system is a race-proven, adjustable linking system featuring expandable widths, modular beam shapes available in a radius or straight setting between each ring.Satin Black Powder Coat FinishSatin Black Powder Coat FinishSecurely Mount and Attach KC 4 in Gravity(R) G4 LED Lights to Jeep JL or JT FOG pocketsSecurely Mount and Attach KC Apollo Pro Lights to Jeep JL / JT A-Pillars This Pro6 LED Light Bar system comes with specifically designed Toyota Tacoma overhead roof brackets and all necessary hardware for easy mounting on OE Toyota Tacoma trucks.

• Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch
• G6 LED Optics available in Spot, Driving, Wide-40 Beam Patterns
• High output, low amperage draw
• Patented Infinity Ring(TM) system enables the conversion of the Pro6 from straight to radius configurations in seconds
• Powered by Gravity(R) LED G6 optical inserts efficient, powerful, patented

---

Information:

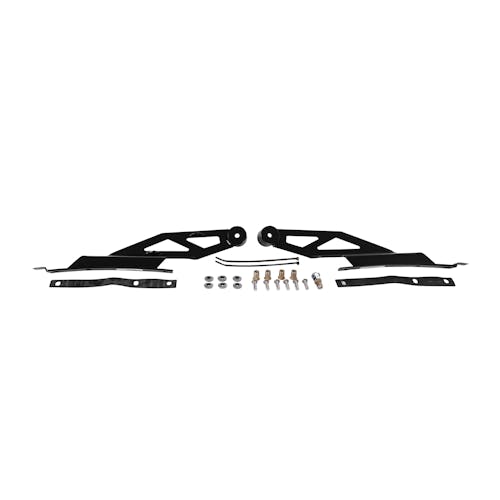

FEATURES-Powered by Gravity LED G6 optical inserts efficient, powerful, patented -Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-High output, low amperage draw-G6 LED Optics available in Spot, Driving, Wide-40 Beam PatternsLIGHT PERFORMANCE-Raw Lumens: 18,400 lm-Lux @ 10 Meters: 6,700 lx-Candela: 670,000 cd-Beam Distance (Meters): 1,637mSPECIFICATIONS-Wattage: 160W-Amp Draw: 13.04A-Voltage: 9-32V-Dimensions: H - 6.06 x D - 3.33 x W - 51.625PARTS INCLUDED-(1) Pro6 8-Light 50 LED Light Bar-(8) Light Covers - Black with Yellow KC Logo-Mount Brackets and Hardware for 2005-2016 Toyota Tacoma-Deluxe Plug-N-Play Wiring Harness with 30 amp LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving and Wide-40 patterns.Infinity Ring SYSTEMThe Infinity Ring system is a race-proven, adjustable linking system featuring expandable widths, modular beam shape available in a radius or straight setting between each ring.EASY INSTALLATION ON TOYOTA TACOMAThis Pro6 LED Light Bar system comes with specifically designed Toyota Tacoma overhead roof brackets and all necessary hardware for easy mounting on OE Toyota Tacoma trucks.RACE PROVEN STRENGTH & DURABILITYInspired by endurance racing, tested by KC athletes, the Pro6 shatters all performance benchmarks, while providing the most durable and scalable light bar design available today.

---

Application Summary:

Year	Make/Model
2005-2023	Toyota Tacoma
