This is the strongest 4-link ever offered by Competition Engineering. It is designed to work in conjunction with our Part No.: C3060 4-Link Frame Rails and our Part No.: C2031 Magnum Series Diagonal Link. The mounting brackets have 5/8" holes that allow for a closer spacing for a wider range of possible adjustments. NOTE: This kit contains Chrome Moly components that require assembly using the GTAW (TIG) welding process. The brackets in this kit may be GMAW (MIG) welded. Proper installation requires the removal of the housing ends.

---

Information:

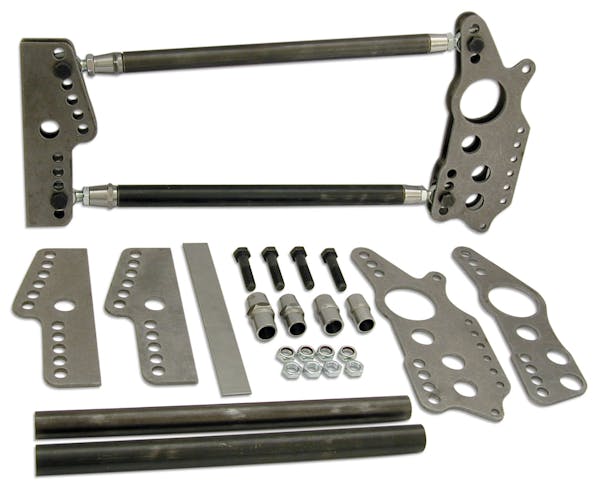

Magnum Series 4-Link Kit; Includes 1⁄4" thick housing & frame brackets (most competitors kits have 3⁄16" brackets) with 5⁄8" mounting holes on a 21" radius, with mounting holes for Wheel-E-Bars™, sway bar and shock mounting as well as 1-1⁄4" holes for additional tube gusseting. We use 1-1⁄4" O.D. x .095" wall top tube and a 1-3⁄8" O.D. x .095" wall bottom tube to handle the shock loads without flexing; All hardware and mounting instructions to ensure an effortless installation; 1⁄4" thick Axle Bracket w/ integral shock mounting holes saves fabrication time by eliminating separate shock brackets; Heavy Duty chrome moly steel link tubes and threaded tube inserts for added strength; 21" mounting radius; Computer machined threaded tube ends; 1-1⁄4" holes provided in brackets for additional gusseting; For 3" Axle Tubes; Includes 4 left & 4 right-hand chrome moly spherical rod ends; Welding required; Sold in pairs. AVAILABLE OPTIONS: PN: C3421 Magnum Series Front Bracket; PN: C2031 Magnum Series Diagonal Link; and PN: C2024 Magnum Series Wishbone.
