Fits Volkswagen Golf R 15-19, GTI 15-21
184 lbs/in (OEM) vs 323 lbs/in (APR) or a 76% increase in Spring Rate
- Lowers 22 mm or 0.87 in Front / 37 mm or 1.46 in Rear MK7.5 GTI DCC)
- Direct plug-and-play

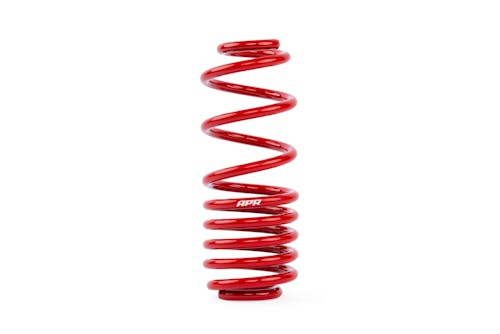

- Made from a high tensile chrome silicon steel that resists sagging and failure
- Lowers 18 mm or 0.71 in Front / 32 mm or 1.26 in Rear (MK7 GTI Non-DCC)
- Powder coated red finish protects springs from corrosion
- Made in the USA
- Lowers 5 mm or 0.20 in Front / 22 mm or 0.87 in Rear (MK7.5 Golf R DCC)
- Increases Spring Rate 50% or +108 lbs/in at 323 lbs/in Front / 60% or +136 lbs/in at 362 lbs/in Rear (MK7.5 GTI DCC)
- Increases Spring Rate 76% or +139 lbs/in at 323 lbs/in Front / 45% or +112 lbs/in at 362 lbs/in Rear (MK7 GTI Non-DCC)
- Increases Spring Rate 50% or +107 lbs/in at 323 lbs/in Front / 48% or +117 lbs/in at 362 lbs/in Rear (MK7.5 Golf R DCC)
- Dual Rate Spring (185 lbs/in to 323 lbs/in Front)

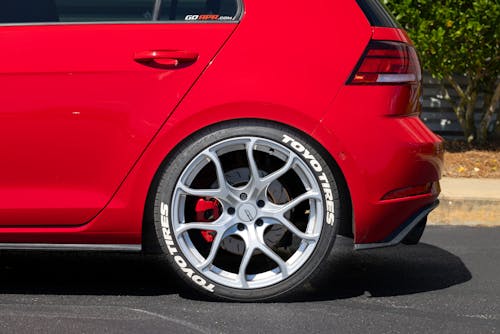

- Greatly improves vehicles stance and appearance
- Dual Rate Spring (155 lbs/in to 362 lbs/in Rear)
- Operates as a single rate “linear” spring during loaded usage
- Remains comfortable on the street
- Lowers the vehicle’s center of gravity
- Reduces body roll
- Improves handling
- Does not easily bottom out dampers
- Does not constantly compress or ride on the OEM progressive bump stops
- Designed for use with DCC and Non-DCC OEM dampers
Information:

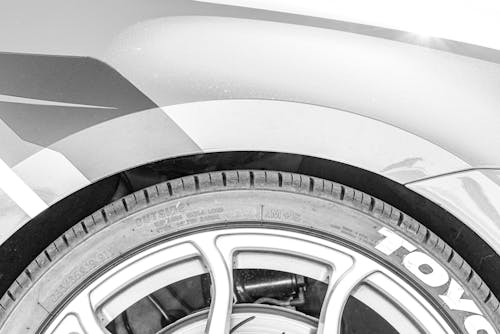

All center of wheel to fender (CF) measurements were recorded on our in-house US Spec 2017 MK7 GTI (Non-DCC), US Spec 2018 MK7.5 GTI (DCC), and US Spec 2019 MK7.5 Golf R (DCC) test vehicles and may vary slightly from vehicle to vehicle. Lastly, while this system was designed specifically for the MK7 / MK7.5 GTI and Golf R, it will fit other similar platform vehicles.
Application Summary:
| Year |
Make/Model |
| 2015-2019 |
Volkswagen Golf R |
| 2015-2021 |
Volkswagen GTI |
| Attributes |
| Brand |
APR |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Suspension |
| Color |
Red |
| Country of Origin (Primary) |
US |
| Emission Code |
6 |
| GTIN |
00810009933533 |
| Harmonized Tariff Code (Schedule B) |
7320201000 |
| Life Cycle Status Code |
Available to Order |
| Lowering maximum |
18mm (Front) (2017 MK7 GTI Non-DCC), 22mm (Front) (2018 MK7.5 GTI DCC), 22mm (Rear) (2019 MK7.5 Golf R DCC), 32mm (Rear) (2017 MK7 GTI Non-DCC), 37mm (Rear) (2018 MK7.5 GTI DCC), 5mm (Front) (2019 MK7.5 Golf R DCC) |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Lowering Spring |
| SDR Required Flag |
N |
| Spring Rate |
323 lbs/in (Front) / 362 lbs/in (Rear) |
| Spring Type |
Dual Rate (unloaded) / Linear (loaded) |
| Sub Category |
Suspension, Springs and Related Components |
| Version |
MK7 GTI/R |
| Warning |
California Proposition 65 |
| Warranty Time |
1 |
| part type |
Coil Spring Lowering Kit |
